LK Heat Exchangers

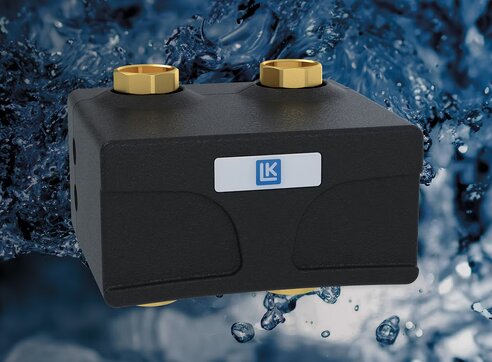

The LK 868 HeatExchanger 125 is a compact plate heat exchanger with connections adapted for the LK HydronicGroup 125 H/C range. It provides a straightforward way to separate media in different systems, making it suitable for applications such as frost protection or older heating systems where oxygen may be present and could damage the heat source.
Available in 15 kW and 30 kW capacities, the unit is pre-insulated with EPP insulation and features a brass valve body. The exchanger is designed for a maximum working pressure of 10 bar and a working temperature range of 1°C to 95°C. A safety group can also be mounted on the secondary side, including a 3 bar safety valve, pressure gauge and expansion vessel connection.
Key features
- Pre-insulated heat exchanger for LK HydronicGroup 125 H/C systems
- Separates media between primary and secondary circuits
- Helps protect systems where frost risk or oxygen presence is a concern
- Available in 15 kW and 30 kW capacities
- Suitable for water/glycol mixtures up to 50%
- Optional safety group available for the secondary side
| Model | |
|---|---|
| 092394 LK 868 90 degree Safety group for Heat exchanger 3/4" | |
| 187985 LK 868 15 kW Heat exchanger 1 1/2 M | |
| 187986 LK 868 30 kW Heat exchanger 1 1/2 M | |
| 187987 LK 868 Insulation Jacket for Heat Exchanger |
