Telford Heat Pump Cylinders
These Telford heat pump cylinders are designed and made in the UK. They are made from stainless steel and are unvented, or pressurised cylinders, meaning that the water inside them is used directly at the showers and taps in your house, with the heat pump heating that water via a coil. They come with a 3kW immersion fitted, and an unvented fitting kit which includes an expansion vessel, safety valves and so on.
The heat pump coil is large bore (DN 32) and has a surface area of 3m2 - meaning it is suited to the higher flow rates and lower flow temperatures at which heat pumps operate most efficiently.

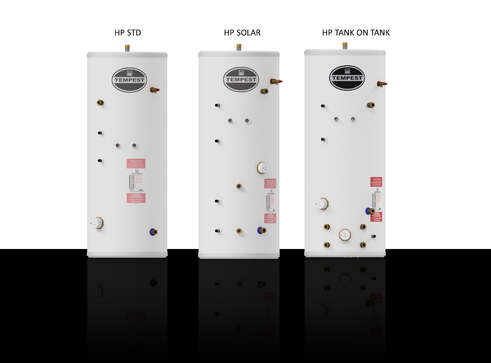

There are options for extra solar solar/biomass coils, slimline versions, horizontal versions, preplumbed versions, as well as tank-on-tank cylinder which combine a heat pump buffer, with the cylinder sat on top as a single, space-saving unit.
| Model | Height | Weight | Diameter |
|---|---|---|---|
| Tempest Heat combined buffer and heat pump hot water cylinder | |||
| Tempest tank-on-tank 50L buffer and 170L heat pump hot water cylinder | 1315mm | 79kg | 580mm |
| Tempest tank-on-tank 50L buffer and 200L heat pump hot water cylinder | 1430mm | 88kg | 580mm |
| Tempest tank-on-tank 50L buffer and 250L heat pump hot water cylinder | 1780mm | 98kg | 580mm |
| Tempest tank-on-tank 50L buffer and 300L heat pump hot water cylinder | 2040mm | 110kg | 580mm |
| Tempest Heat Pump | |||
| Tempest 200L heat pump hot water cylinder | 1500mm | 46kg | 554mm |
| Tempest 250L heat pump hot water cylinder | 1800mm | 55kg | 554mm |
| Tempest 300L heat pump hot water cylinder | 1780mm | 61kg | 580mm |
| Tempest 400L heat pump hot water cylinder | 1590mm | 68kg | 660mm |
| Tempest 500L heat pump hot water cylinder | 1835mm | 75kg | 660mm |
| Tempest Heat Pump twin coil | |||
| Tempest 300L heat pump twin coil hot water cylinder | 1780mm | 63kg | 580mm |
