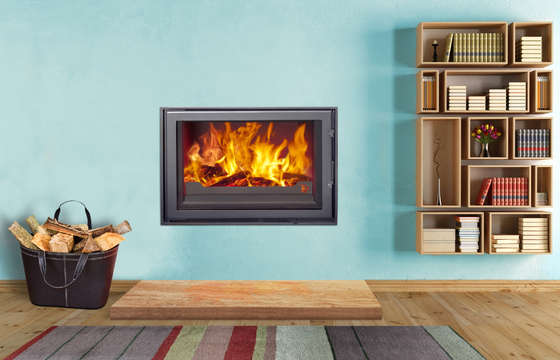

RX Insert stoves

The RX stoves have a three-sided boiler surrounding the firebox as well as heat exchanger tubes above, allowing them to capture all available heat and pass it into the heating circuit or a thermal store. The firebox is lined with vermiculite to guarantee a high firebox temperature and a controllable, clean and efficient burn. There is full control over the primary and secondary air, to allow slow burning, and the built-in draught control valve ensures that the optimum draw on the fire can be maintained at all times.

The Panorama models function in the same way as the rest of the RX range, but offer a wider firebox and give an even better view of the fire.

For further information, please call 01803 712721.

Model Door HeightDoor WidthEfficiencyNominal Heat OutputMin Heat OutputNominal Output to WaterNominal Output to RoomHeightWidthDepthWeightFuel
Woodfire RX 12460mm640mm79%12kW3kW9kW3kW645mm680mm560mm110kgWood
Woodfire RX 20460mm640mm80%20kW4kW14.5kW5.5kW860mm680mm560mm189kgWood
Woodfire RX 30510mm760mm80%30kW6kW23kW7kW960mm800mm560mm300kgWood
Woodfire RX 30 Panorama510mm1060mm80%30kW5kW22kW8kW960mm1100mm560mm300kgWood
Woodfire RX 40 Panorama510mm1060mm80%40kW8kW30kW10kW960mm1100mm560mm310kgWood

Contact us about this stove

If you need further information or would like to enquire about purchasing this stove, please fill in the form below and we will get in touch.
